Assessment of Stand-Alone Photovoltaic System and Mini-Grid Solar System as Solutions to Electrification of Remote Villages in Afghanistan

Mohammad Ali SINA^1* ; Mohammad Adel ADEEL²

^1,2Department of Electric Power Engineering, Technical University of Ghazni, Ghazni city, Afghanistan

Abstract

Afghanistan enjoys huge renewable energy, especially solar resources. Meanwhile, most of the population especially people who live in remote rural areas, still do not have appropriate access to electricity. Poor access to energy has made life more challenging and deprived rustic people from related primary living facilities. To address this grant challenge, considering the high potential of solar energy available in the country, this paper presents a study on design and economic comparison of the two most feasible methods of solar power production for rural areas in Afghanistan. In the first method, a stand-alone Solar Photovoltaic (PV) system has individually been considered in every single house of a village. In this way, energy is produced and consumed in each house itself. While in the second method, energy for the whole village is produced by a micro solar power station in a centralized manner and then distributed through a 0.4 kV islanded Mini grid all around the village. The study is carried out through conventional mathematical relations, based on daily energy demand in a rural household. The result indicates that implementation of the second method is not only best affordable but also more viable and will create other socio-economic opportunities.

Keywords:Photovoltaic sizing, stand- alone PV system, cost evaluation, energy cost, rural area, electrification methods.

1. Introduction

Afghanistan is a mountainous and landlocked country located in south-central Asia. The total population of the country in 2020 was 32.9 million people which 23.4 million (71.13 %) of them live in rural areas [1].  Due to several decades of political conflict and civil war in this country, energy sectors and infrastructures have been widely damaged and dropped behind. Currently, despite high energy resources, especially renewable energy potential available, the country depends heavily on imported electricity. Besides the importing power and somewhat domestic production, the supply is insufficient to cover the demand. The electricity demand in the country is more than 2500 MW, while the supply by early 2020 was reported 1015 MW as imported power from neighboring countries, and 628 MW domestic production [2]. On the other hand, considering Afghanistan's present and future power system plan [3] we can see that wide part of the country consisting of several hundreds of scattered villages are located far away from the transmission system, and due to low population density and considerable distance from the transmission route, seems unfeasible to be connected with the national electrical grid even in far future. However, most of the households in rural areas currently use PV technology but with very low power output because of economic limitations. A report by National Statistic Information and Authority - NSIA [4] pointing out an increasing poverty level stated that 54.5% of the country’s population were facing adversity of poverty. Currently, according to our survey, 93 % of rural households in Ghazni province use only a single PV panel and a small capacity battery storage. This solar home system (SHS) is able only to provide tiny amount of energy just to enlighten a few lamps in limited hours during the night. Due to unsuitably configurations and clumsy operations, this approach is not only very limited but also has a very short useful life, and can’t provide energy to other home appliances such as refrigerator, laundry service, TV and etc. Luckily, there is large amount of solar energy potential available in the country. On average, 300 sunny days per year and a total 222.8 GW feasible amount of solar potential has been estimated in Afghanistan [5]. On the other hand, plenty of free-cost land also can be provided in rural areas. According to Ludin, et al. [6] using only 2% of land in Afghanistan we can produce about 23.576 GW power. Moreover, in Shoaib and Ariaratnam [7] a study of socio-economic impacts of renewable energy projects in Afghanistan shows that enhancing energy access can affect life quality and business, and improve the rural economy. In this paper the authors examined the socio-economic effects of renewable energy projects for cities and communities of Afghanistan. They suggested that these projects will improve social and economic conditions and also create job opportunities.In Sadiqi, et al. [8] the author studied rural electrification to determine the most economically optimal combination of renewables in two scenarios. First, a combination of renewables with battery bank and second the combination of renewables with diesel generator. Finally, he resulted that, the second scenario is a more cost-effective alternative because of its lower cost of energy. In addition, a feasibility study of solar energy in South Asia, including Afghanistan, states that solar renewable energy is more economic and feasible for the population who are living in rural and other areas that are not connected to the national grid [9].

A research on solar electrification of a remote villages in Iran also has shown that this method although has high primary investment cost, the unit cost is lower than other types of power plants [10]. Another study on a stand-alone PV system which was designed and cost estimated for a village in Yemen, concluded that the PV systems have high initial cost but low operating cost and is beneficial for remote areas [11]. According to Jahangiri, et al. [12] the development of renewable energy obtained from solar and wind potential improve people’s life and brings economic growth.

Now, considering the current situation of rural electrification, this paper presents the design and cost estimation of the two most feasible methods of remote villages solar powering in Afghanistan. In the first method, a Stand-alone Photovoltaic system, in which the energy is produced and consumed in every single house of the village, and in the second method, energy for the whole village is produced in a centralized manner by a Micro Solar Power Station, and then distributed through a 0.4 kV islanded Mini grid all around the village. This study aims to find out a better and considering the current economic limitations, a more affordable solar powering approach; in order to increase the level of electricity access in rural areas of Afghanistan, and also to encourage private investors to look at this problem as an opportunity.

2. Methodology

The power ratings of most necessary home electrical appliances and their operating time during the day were first itemized to obtain the total Watt-hour energy demand per day. The results were used to determine the proposed photovoltaic system components by existing mathematical relations. Then, based on the present cost of Solar PV system components from some reliable sources, the initial cost of the project was calculated. Finally, through annualized capital cost, the cost of energy was determined for each of these two methods and they were compared from a socio-economic point of view. It should be noted that for better stating the problem from a close environment, through distributing online questionnaire consisting total 15 questions, we asked people living in Ghazni province to give information about the current power supplying method of their houses, the ratings of power production and consumption components they are using, and the level of their satisfaction from their present solar home system (SHS). The feedbacks from total 137 respondents have helped us only to state the problem more accurately.

2.1.Case study area

Generally in the country, most of the villages are composed of grouped houses collected together. The design is focusing on JoyeNow village of Jaghori district in Ghazni province. This village is located at 67°28’57” longtitude, and 33°07’57” altitude. Most of villages in Jaghori district, cosists of 10 to 50 adjacent houses. The village which is selected as a case study area, is composed of 20 houses located in somewhat circular shaped area which is appropriate to locate solar micro power station at the center.

2.1.1. The first method (Stand-alone Solar Home System)

In the first method we consider a single household power supply by a stand-alone solar photovoltaic system.

i- Determining the energy consumption demand

The first step for designing a Stand-alone Solar Home System is to determine the required energy[13]. Table 1, represents the electrical appliances needed in a home with their wattage and their time of operation.

Table-1. The rated power and time of operation of most necessary home electrical in a single household.

No	Appliance	Quantity	Power (w)	Daily use (h/day)	Daily energy consumption (Wh)
1	LED lamp	8	10	5	400
2	TV	1	100	8	800
3	PC	1	80	4	320
4	Mobile	3	10	3	90
5	Water pump	1	1500	1.2	1800
6	Refrigerator	1	200	8	1600
7	Laundry Machine	1	1000	0.72*	720
8	Other use	1	110	2	220
	Total	Max load: 3100 Watts			5950 Wh/day/house

ii- Sizing of the PV array

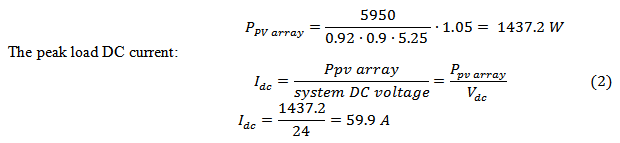

Power required from PV modules can be found according toEquation 1.

Where,  are the efficiency of the charge controller and inverter respectively and the PSH shows the peak sunshine hours which for the target area is 5.25 kWh/m2/day  [12]. Considering the efficiency of inverter as 92% and for charge controller 90%, and   which is the safety factor equal to 5% we have:

The PV module of (AS6M30-240, 240 Wp, Voc= 34.5 V. Isc= 8.93 A, Vmpp=27.7 V and current at Impp=8.32A) is selected. The maximum power will be: 230.5 W.

iii.Determining the PV module output power considering the affecting factors

The affecting factor which influences the output of the PV modules are:

a) Manufacturer output error (Fmanf): The output power of PV modules in Watts approximately considered ±5% which is defined in 25°C for the cells. In our case according to the data sheet of chosen solar, Fmanf is given 0 ÷ +3%, so we consider the Fmanf =0. Thus the module output will receive no effect of manufacturing error and remains constant 240 W.

b) Pollution factor (Fdirt): The output of a PV module will reduce due to dirt on it. In designing the PV array the amount of this reduction is considered by this factor. This factor depends on the environment and climate of the area where the modules are mounted. The Fdirt is considered to be 3%, because in the village where the project is located, the level of air pollution is much lower than the cities; so the module output will be:

c) Temperature effect factor (Ftemp): This factor is calculated by Equation 3.

Where  is the energy temperature factor which shows that for every (°C) growth of temperature higher than 25°C, how much the output power of the PV module decreases [14]. In our case for the selected PV module the is (0.41% / °C) [15]. Tstc is the temperature in standard test condition and  according to the AS4059.2 standard, is the average temperature of the module’s cells which is calculated by the formula:
, where Tcell eff is the average effective daily temperature of cells in °C, and Ta day is the average daily temperature in specific month in (°C) [13].
Ta day = 27 °C in hottest month of the year for the targeted area, from Weahter and Climate Website [16]. So, . And   for the given modules is defined -0.041% by the manufacturer, and Tstc = 25°C in standard test condition. Therefore, using the given formula, we obtain the Ftemp = 0.877.
Hence with considering the affecting factors, the output of 240 Wp of the selected module will decrease to 209.89 W.

iv- Calculation of the number of PV modules

For a Stand-alone Solar Home System, it is necessary to define the PV modules that can satisfy the load and also the battery charging power. These modules have to be connected in such a way that can meet the necessary current and voltage of the system. Hence the following conditions has to be accomplished [13]:

1- The number of the series modules is equal to system DC voltage divided by the module rated voltage:

2- The number of parallel connected modules is found by division of the total Solar PV array power by power of one single module and number of modules in series.

Then the number of total needed modules = Ns x Np.
. So the total generation at MPP will be:
The total cost of modules while one module costs 0.21$/watt [15] is:  7 x 240 watts x 0.21$/watts=357$

v- Sizing of the battery bank

The battery bank size and its capacity must be designed in such a way that in addition to the supplying power in usual daily hours which there is no sun or less sun, it also should be able to supply the loads in case of difficult weather conditions, for certain number of autonomy days. The cloudy days during which the battery bank has to supply the load without being recharged by solar system, is called autonomy days. The approximate capacity of energy storage is obtained fromEquation 4according toMothilal and Pillai [17].

Where  and  are the efficiencies of the battery and inverter respectively, VBB is the voltage of battery bank and DOD is depth of discharge. Considering the meteorological statistics for the targeted area the number of autonomy days ( ) is selected 2 days. Thus the Ampere-hour capacity of the battery bank is:

The battery of (MAXI lead acid 200 Ah, 12 V) is selected.

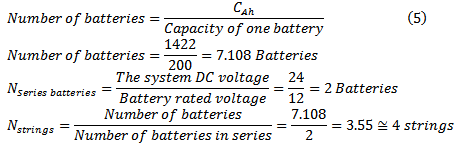

The number of parallel and series batteries are calculated as follow.

Thus the total number of batteries are: 2x4=8 Batteries.
The total cost of batteries used in battery bank while one battery costs 125$, is equal to: 8 x 125$=1000$ [18].

vi- Sizing of the Charge controller
The charge controller must be capable to handle the maximum load current passing through the controller for unlimited time. Furthermore, it should be able to handle the maximum photovoltaic array current. For this reason, we use the maximum array short circuit amps which is greater than the operating current. It equals to module short circuit current x number of strings plus a 25% of this current as a safety margin. Its voltage range should match the PV array output voltage [19].

So we select SP2480 Charge Controller for 24 V, 80 A. It costs 65 $, [20].

vii- Sizing of the inverter

The output power of the inverter must be at least 25 – 30% higher than the total load power which simultaneously applied on the inverter [13]. It should be noted that the performance of inverter from the losses point of view is not constant with the power. In order to avoid this waste of energy it is better to consider not the peak power of all equipment, but the peak power of simultaneously applied loads. The probable maximum power applied on inverter is 3100 watts.
Considering diversity factor, DF=1.2 according to Jiguparmar [21] the applied load on the inverter will be:  Thus the minimum capacity of needed inverter is: Pinverter = 1.25 x Peak load= 1.25x2584= 3230 W. So the inverter [Grand glow Inverters GS- 3.5kW - Single Phase] was selected. This inverter costs 396 $, [22].

2.1.2.The Second method (Micro Solar Power Station)

In the second method it is considered to produce power by a Micro solar plant and distribute through 0.4 kV Mini grid for whole the village to provide the same level of electrification as in first method which discussed formerly. The targeted village is composed of a total 20 households having the same home electrical appliances and the same load character as the single household described above. In this case the total load will be: 20×3.100=62 kW and daily required energy is 20×5.950=119 kWh/day. Obviously in this case we have to build an electrical grid to distribute the generated electricity among the houses thus; considering 5% (5.95 kWh/day) grid loss, the total required energy to be produced is: 124.95 kWh/day.

Following the same design procedure as used in previous method, we will find the size of the PV array and battery bank components for whole the village as briefed in (Tables 3 - 5). In this method (Micro solar power station), due to heavy load and high DC current, we select the system DC voltage bit higher (180 volt) to reduce the DC current in optimum value, hence the sizes of inverter and controller recalculated as follow:

i.Sizing of the Charge controller for micro solar plant

In this case: I_(SC array)=I_(SC module) xN_(Parallel modules) x 1.25=8.93 ×24×1.25=268 A. So we select five [SP 192,60A Charge Controller for 192 VDC, 60 A] in parallel combination. It costs 184 $ each [19]. The total cost will be: 5×184=920$.

ii.Sizing of the inverter for micro solar plant

As the electrical network is supplied by AC 0.4 kV voltage, then it is necessary to use inverter for converting the DC voltage into AC. The maximum estimated load plus grid loss is 65.1 kW. The diversity factor of residential load common distribution board is DF=2 [21] so the applied load on inverter will be 32.55 kW. The required size of inverter will be: P_Inverter=1.25×32.55=41 kW
Three inverters of [Grand glow-15kW 192 VDC input and 3 phase 400 VAC output] with total 45 kW rated power is selected. It costs 1320 $ each [21].

2.2 .Energy Cost Estimation

For calculation of the energy cost first it is necessary to calculate the annualized total cost of each system. Because each component has different life span as in Table 2,so it is needed to calculate the annualized capital cost separately. The annual capital cost of each component is calculated using Equation 7.

Where in Equation 7, the A is the annualized capital cost, (d) is the inflation rate considered equal to 5 %. T is the total life of the components in year, and P is the present cumulative value of the component.

Table-2. The life spans of the system components based on manufacturer report.

Life span  T (Year)	Component
20	PV modules
7	Batteries
15	Inverter
15	Charge controller

Once the annualized capital cost of each component (An) is calculated, the total annualized capital cost is then calculated by summing the (A) for all the components. The cost of energy can be calculated by dividing the total annualized cost by the yearly produced energy of the system [23]. The results are available in Tables 7 and 8).

3. Results

The results obtained from various steps and final answers of all above calculations are tabulated as follows. Table 3 presents the detailed result of PV array sizing for a single house and 20 houses in both the methods. As the table illustrates, the system DC voltage is selected 24 Volts and 180 Volts in first and second method respectively. The number of necessary PV modules are calculated to be 7 parallel modules for the first, and 144 modules combined in 24 strings of 6 modules in series for the second method.

Table-3.The results of the PV array design of both the methods

The method	Number of houses	PV array sizing results
		PPV array (W)	IDC (A)	System DC voltage (V)	Calculated Number of modules in series	selected number of modules in series	Calculated number of string	Selected Number of strings	Total needed Modules
1st	1	1437.2	59.9	24	0.79	1	6.85	7	7
2nd	20	30181.2	168	180	5.94	6	23.97	24	144

Table 4 indicates the details of battery bank sizing. As it is clear from the table, the type of batteries, number of autonomy days and depth of discharge (DOD) for both the methods have been considered the same. The total number of necessary battery for 1st and 2nd methods comes out to be 12 and 225 batteries respectively.

Table-4. The results of the Battery sizing for both the method

The method	Number of houses	Battery sizing results
		DOD	Number of Autonomy days	System DC voltage (V)	Required capacity C Ah (Ah)	Selected Battery capacity (Ah)	Battery voltage (V)	Number of Battery in series	Number of strings	Total Number of Batteries
1st	1	0.75	2	24	1421.7	200	12	2	4	8
2nd	20	0.75	2	180	29856.6	200	12	15	10	150

The cost of the PV system components with respect to their types and quantities have been illustrated in Tables 5 and 6, for the first and second methods respectively.

Table-5. The system components and cost estimation of the first method (Stand-alone Solar Home System)

No	Component	Type	Quantity	Unit price ($)	Cost per component ($)
1	PV modules	AS 6M 30-240	7	51	357
2	Batteries	MAXI lead acid 200Ah 12V	8	125	1000
3	Charge controller	SP-24,80 Garnde Solar	1	65	65
4	Inverter	Grand glow 3.5kW 1 Phase	1	396	396
5	Support structure	-	1	135*	135
6	Switches & Wiring	-	-	-	300*
	Total cost ($)				2253 Say 2260

Table-6. The system components and cost estimation of the second method (Micro solar station).

No	Component	Type	Quantity	Unit price ($)	Cost per component
1	PV modules	AS 6M 30-240	144	51	7344
2	Batteries	MAXI lead acid 200Ah 12V	150	125	18750
3	Charge controller	SP-192,60 Garnde Solar	5	184	920
4	Inverter	Grand glow 15kW 3 Phase	3	1320	3960
5	Support structure + Building	-	1	1800* + 800*	2600
6	Switches & Wiring	-	-	-	1500*
	Total cost ($)				35074 Say 35100
	Grid investment	Has not been considered

Table-7. The energy cost estimation for the first method (Stand-alone Solar home system)

Component	Life span T (year)	Interest rate d (%)	Annualized capital cost ($)
PV modules	20	0.05	28.65
Batteries	7	0.05	172.82
Charge controller	15	0.05	6.26
Inverter	15	0.05	38.15
Daily energy produced	5.95		kWh
Annual produced energy	2171.75		kWh
Energy cost	0.113		$/kWh

Based on the life span the most important components of the PV system, and considering a 5% inflation rate (d=5%), the energy cost has been calculated as previously described in Section 2.2. The results for the first and second methods can be seen in Tables7 and 8 respectively.

Table-8. The energy cost estimation for the second method (Micro Solar Station)

Component	Life span T (year)	Interest rate d (%)	Annualized capital cost ($)
PV modules	20	0.05	589.30
Batteries	7	0.05	3240.37
Charge controller	15	0.05	88.63
Inverter	15	0.05	381.52
Daily energy produced	124.95		kWh
Annual produced energy	45606.75		kWh
Energy cost	0.094		$/kWh

4. Discussion

To provide power for the targeted village, we considered two methods. As in the first method, there is no network existing, thus no losses due to the network will occur while in the second method, because the produced energy by Micro solar power station is distributed through a Mini-grid, therefore, the network losses come in to account. Thus, to cover the demand, daily at least 124.95 kWh energy has to be provided. Based on estimated demand values, the size of the PV array, battery bank capacity and ratings of charge controllers and inverters for both intended methods have been calculated accordingly. According to the first method, as indicated in the first row of Table 3, for each household,  a PV array consisting of 7 parallel connected modules of 240 Wp is necessary, which the maximum output DC voltage and current of the array will be 34.5 VDC and 62.5 A. And also as per the first row of Table 4, for each household according to the first method, a battery bank including 8 batteries of 200 Ah capacity is required. To ascertain this, as per Table 5 the cost will come 2260 $ on each individual solar home system. With this approach, assuming the same load value and same component characteristics as in the first method, for all 20 households existing in the village totally 140 PV modules and 160 batteries have to be provided, and totally 45200 $ has to be spent by whole the village to achieve the targeted level of electricity access. While, as indicated in the second rows of Table 3 and 4, to supply the whole village consisting of 20 households by a Micro solar power station (second method), there has 144 PV modules of 240 Wp and a battery bank including 150 batteries of 200 Ah capacity in 10 strings consisting 15 series 12 volt batteries been estimated. Consequently, according to Table 6, by this way totally 35100 $ is required to be spent. For the proposed micro solar power station, the PV array is a combination of 24 strings having 6 series modules each. So the open circuit output voltage is:   VDC, and maximum DC current =  A.

Comparing these two approaches, we can find that the initial cost of the second method (Micro solar power station) without the electrical grid, for whole the village comes lower than the first method by 10100­$. Additionally, these two methods have different socio-economic impacts as briefed in advantage and drawback in Tables 9 and 10.

Table-9.The advantages and drawbacks of the first method (Stand-alone Solar Home System)

Advantages	Drawbacks
1. Smaller system, thus doesn’t require much maintenance cost.	1. Not affordable for most of the families (Due to economic conditions), thus most of poor families are deprived from enough electricity access.
2. Much modular, thus best matches the demand.	2. Can’t have professional and regular maintenance, thus shorted life of system components.
3. Brings independency for each household.	3. Due to lower diversity factor, components of much higher output ratings are required.
	4. Higher cost of energy ($/kWh)

These differences stem from these two facts: First, the specific cost per kW of many of the system components e.g. inverter, charge controller, supports and structures of the solar system with higher output power values, are significantly lower than those for smaller output power values. And second, in the case of higher number of households connected to one distribution board, the higher value of diversity factor occurs in electrical load estimation thus, decreases the requirements of sizing the components.

5. Conclusion

To achieve an acceptable level of electricity access by stand-alone solar power system with 2 days backup storage in a rural house, it is necessary to spend at least 2260$, which currently due to unfavorable economic conditions in the country it is not applicable for most of the families. To provide this level of electricity access in each house, whole the village totally has to spend 45200 $. While by the second method, forgetting about investment on the electrical grid, 35100$ is necessary to build a Micro solar power plant with 33.5 kWp capacity and 2 days backup storage to provide equal amount of power for whole the village as in the previous method. However, to implement the second method we must build a distribution grid, this approach has more other positive socio-economic impacts as described in Table 10. Since the first method due to the economic limitations of the families is not possible, to realize appropriate electricity access in rural areas the second method can be adopted through investing by small private investors.

Table-10 .The advantages and drawbacks of the second method (Micro solar station with mini 0.4 kV grid).

Advantages	Drawbacks
1. Creates Investment opportunities.	7. Requires regular maintenance thus higher maintenance cost.
2. Creates job opportunities.	8. Needs electrical grid investment.
3. Extends the life cycle of the equipment due to regular maintenance.	9. Energy loss in electrical grid.
4. Provides enough and equal energy accessibility.
5. Brings affiliation and cooperation practices between families living in the village.
6. Lower cost of energy ($/kWh)
