Static Analysis and Machine Learning-based Malware Detection System using PE Header Feature Values

Chang Keun Yuk¹; Chang Jin Seo^2*

¹Department of Electronic Information System Engineering, Sangmyung University, South Korea.
²Department of Information Security Engineering, Sangmyung University, South Korea.

Abstract

Advances in information and communications technology (ICT) are improving daily convenience and productivity, but new malware threats continue to surge. This paper proposes a malware detection system using various machine learning algorithms and portable executable (PE) Header file static analysis method for malware code, which has recently changed in various forms. Methods/Statistical analysis: This paper proposes a malware detection method that quickly and accurately detects new malware using static file analysis and stacking methods. Furthermore, using information from PE headers extracted through static analysis can detect malware without executing real malware. The features of the pe_packer used in the proposed research method were most efficient in experiments because the extracted data were processed in various ways and applied to machine learning models. So, we chose pe_packer information as the shape data to be used for the stacking model. Detection models are implemented based on additive techniques rather than single models to detect with high accuracy. Findings: The proposed detection system can quickly and accurately classify malware or ordinary files. Moreover, experiments showed that the proposed method has a 95.2% malware detection rate and outperforms existing single model-based detection systems. Improvements/Applications: The proposed research method applies to detecting large new strains of malware.

Keywords:Benign, Machine learning, Malware detection, PE header, Staking method, Static analysis.



1. Introduction

With the development of information industry technology, daily convenience and productivity in the industrial field have been obtained, but security threats have simultaneously increased. As information technology, such as big data and the Internet of Things (IoT), advances rapidly, the use of the Internet is indispensable. Thus, cyber-attack and security are not just an issue in a personal computer, but expanded to a network and even the entire infrastructure, they can have a significant effect on our daily living. Malicious code is at the heart of this problem. Malicious code accesses user's devices to cause various problems such as personal information leakage, unauthorized remote control, network traffic generation, degradation of system performance and financial loss. According to the AV-TEST statistics, the total number of threats by new malware was 137.47 million  as of 2018 for Microsoft Windows OS, which meant 4.4 threats per second. In the recent three years, the total number of malware threats was 719.15 million in 2017, 856.62 million in 2018, and 1,001.52 million in 2019, which verified the increasing trend [1]. To detect malware, signature-based or heuristic-based methods are most widely used [2]. The signature-based method detects malware by analyzing signatures made from malware behavior rules or unique binary forms by the analysis personnel. The heuristic-based method detects malware by comparing the similarity of the code. The heuristic-based method has been used to overcome the drawback of the signature-based method, but it is vulnerable to the increase in false-positive rate. In addition, since the heuristic-based method detects malware from data extracted from the set of collected malware, it is difficult to respond to variant malware or a zero-day attack immediately. To overcome this limitation, a method to detect malware using artificial intelligence (AI) has been studied. The AI area has been spotlighted in recent years in many applications, including AlphaGo, autonomous driving, and chatbot, etc. Samsung SDS (Samsung Data System) tested the detection rates of signature-based and AI-based anti-virus methods. The result showed that the false positive rate of signature-based anti-virus was 93.8%, whereas AI-based anti-virus was 0% in the variant malware area. In addition, the AI-based anti-virus also recorded around 1% of the false-positive rate in execution files and ransomware other than document-type files [3]. As such, studies on AI-based malware detection technology have been actively conducted to overcome the limitation of existing malware detection methods. There are three types of feature data extraction methods of malware. Automation analysis uses an automation platform such as a sandbox, dynamic analysis that focuses on actual running code and behavior while executing malware, and static analysis that obtains information by analyzing malware binary files without executing them. The static analysis method is relatively more straightforward and faster than other methods to get general information about the characteristics of malicious programs. In particular, it has little risk of infection because it does not execute programs directly. Thus, this study proposes a method to learn, analyze, and detect malware files by applying the portable executable (PE) header feature values to the stacking method after data pre-processing using the static analysis method targeting malicious and normal files.

2. Related Work

The study by Ha, et al. [4] statically analyzed imported dynamic link libraries (DLLs) inside the PE headers and application programming interface (API) features and employed the analysis results to detect malware. To check the feature performance, a deep neural network (DNN) model was used. Features that were rapid and lighted while detecting malware were selected after identifying the emergence ratio between malware and normal files by extracting the DLL/API information. The machine learning results were comparatively analyzed, which exhibited that by only using the static analysis the accuracy was over 91% in API and 86% in DLL. Their study did not use all PE header information, but only employed DLL and API features. Furthermore, machine learning was used not to improve malware detection accuracy but to find useful features to detect malware from the DLL/API information and verify the features. Ahmadi, et al. [5] studied the malware challenge data provided by Microsoft using the XGBoost model and then classified them into families according to malware features. It employed five byte-based features and eight disassembly-based features extracted from the PE headers through data static analysis. The experiment was conducted with cross-validation. It showed more than 95% accuracy in most training features, and when all features were composed of training data, it showed 99% accuracy, which showed the best performance. However, their study employed only 13 features extracted from PE headers. It proposed a method to classify distinguished characteristics according to malware into families based on the grouping of the characteristics rather than detecting malware files. The study by Lee, et al. [6] analyzed the multi-classification performance of ensemble models after configuring the API/DLL features of training data for the family classification of malware. The PE import address table (IAT) was analyzed to extract API/DLL information, and pre-processing was conducted by analyzing assembly code. Tree-based algorithms such as XGBoost and random forest were used as a model to train malware. Binary classification experiments of normal and malware and multi-classification investigation of malware families were conducted. The experiment was conducted with cross-validation. In the performance comparison, the malware detection rate was 93% when using random forest. The classification accuracy of malware families was 92% when using XGBoost, and the test’s false positive rate that included benign code was 3.5%. Their study should define the list of APIs in advance to employ the features of the APIs, and feature values became scarce regardless of classes if the name in the list would be different due to Windows operating systems update or function name change. Thus, detection models based on API features are not appropriate to be used for a long time. These study trends show that features are extracted based on various information that can be statically extracted, and machine learning is used to detect malware. However, classification models were implemented using only part of the information obtained from PE files or employing only machine single learning models. In the present study PE headers and opcode feature data, which can be obtained using the static analysis method to rapidly detect a large amount of generated malware with less consuming resources, are extracted and employed as feature data.  In addition, this study employs the stacking method that mixes and uses a single model, which is different from other ensemble methods, to raise the accuracy of malware file detection and reduce the false-positive rate.

3. Proposed Method

The malware detection system proposed in this study consists of the following steps: data preprocessing, feature extraction, model learning, and model evaluation. Figure 1 shows the flow of the malware detection system used in the experiment.

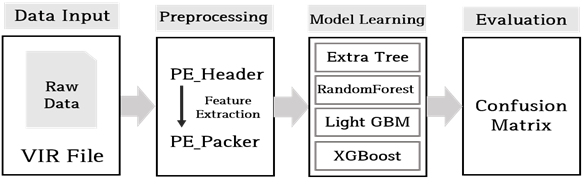

Figure 1.System configuration diagram of the proposed method.

3.1. Data Preprocessing and Feature Extraction

PE files refer to execution files, DLLs, font files, and object code. etc., which are used in the Windows operating systems. Information needed in PE files is mostly present in the header section in the PE structure. To extract the features of the PE header, a script provided by the open-source project of Classification of Malware with PE headers (ClaMP) was used [7]. Using this script, a total of 60 raw features were extracted as follows: six from Disk Operating System (DOS) headers, 17 from file headers, 37 from optional headers and seven derived features. The derived features refer to features where meaningful information is extracted by processing PE header values one more time. In this study, extracted PE headers were processed using three methods and tested to find the optimal performance features:

1. Since the packer_type column in the extracted PE header contains the categorical data, pe_header features were generated by removing the column.
2.  Pe_packer features were generated by the one-hot encoding of the same column. Figure 2 shows the one-hot encoding of typical four data types in the packer_type column.
3.  Pe_top features were generated using Pearson's correlation coefficient.

Figure 3 shows the overall pe_header features by visualizing the correlation coefficients. Here, only 45 columns, including e_cblp, which have a range of correlation coefficients from 0.0 to 0.3 with the class, were separately extracted and used as the pe_top features.

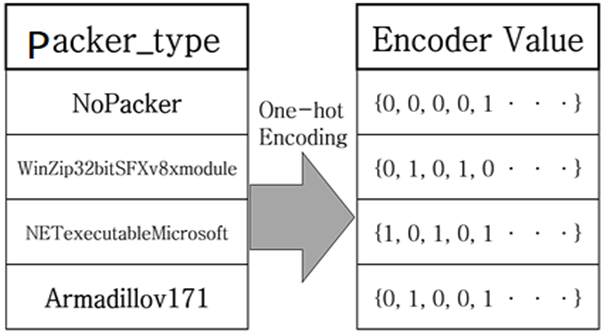

Figure 2. Example of one-hot encoding method used to process pe_packer features.

Features from the PE header and the actual code in the data area were extracted. After locating the code portion, opcode data, which is a byte, was converted to assembly code. The converted code's feature was extracted using the N-gram analysis. N-gram is a natural language processing method that extracts a continuous sequence of N elements from a given set of strings.  It ties N continuous opcodes and recognizes it as a single pattern, thereby counting the same patterns. The data scarcity problem may occur when N is more significant and the size of the pattern is more significant, resulting in a decrease in the probability of counting. Thus, this study tested the case only when N is three or four. The patterns of opcode 3-gram or 4-gram were extracted, and only the patterns whose pattern count was one of the top 100 from a single file were separately extracted to be used as feature values.

To evaluate the optimal combination from the extracted features, the extracted features were put into many classification algorithms and tested. The classification algorithms used in the test were logistic regression, support vector machine (SVM), random forest, and XGBoost. The data for feature extraction were 15,000 learning data files provided by the 2018 information protection research and development (R&D) Data Challenge AI-based malware detection track. Of the total, 80% of them were used in learning, while 20% were used in testing.

Table 1.Learning results of the extracted features using the classification algorithms.

Model data	LR	SVM	RF	XGB	AVG
pe_header	0.709	0.710	0.940	0.934	0.823
pe_packer	0.709	0.710	0.944	0.935	0.825
pe_top	0.708	0.710	0.928	0.920	0.817
4gram	0.744	0.736	0.805	0.812	0.774
3gram	0.774	0.731	0.824	0.820	0.787
pe_4gram	0.691	0.697	0.910	0.932	0.808
pe_3gram	0.692	0.697	0.909	0.924	0.805

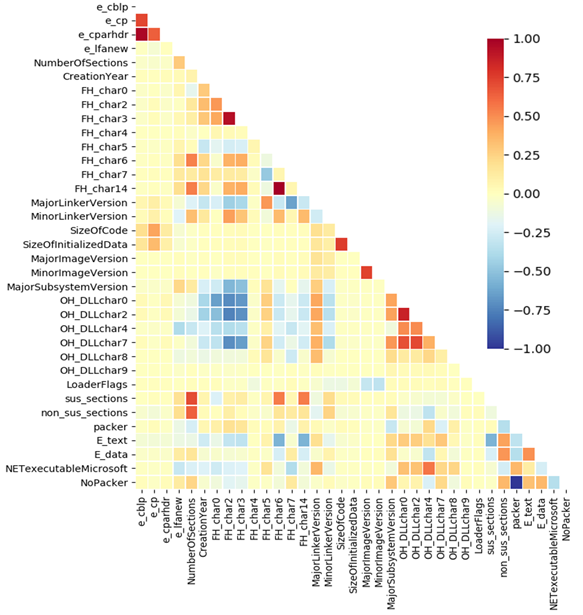

Figure 3. Visualizing correlation coefficients for pe_top features.

The features of pe_3gram and pe_4gram are features of single data by combining pe_packer and N-gram features by column. As presented in the learning results of Table 1, the average accuracy of the PE header processed features was higher than that of single N-gram features. In addition, the accuracy of the pe_packer feature created by adding packer information, which was made by the one-hot encoding of the packer_type column, was higher than that of the pe_header feature. The highest accuracy was found when the pe_packer feature was applied to the XGBoost model in terms of the best accuracy criterion. In contrast with the N-gram feature, which had a case that cannot be extracted depending on files, all Windows programs had PE headers because PE headers provided information about the program overall. Thus, the pe_packer features, which can be extracted from all files had higher accuracy than other features, were selected as the final feature used in the modeling.

3.2. Model Learning

The stacking (stacked generalization) method, called metamodeling, was used for malware learning [8]. The stacking method is a technique to produce the best performance by mixing and using different single models instead of using other machine learning ensemble techniques. The prediction results of the sub-model were produced using the training dataset, and these results were used again as training data for the meta learner. It is an algorithm to make the final prediction value by the meta learner with the prediction values of the sub-model as the input values. Because the overfitting problem occurs if the same data are repetitively trained, the cross validation (CV)-based stacking method was used [9].

The CV-based stacking method employs the K-fold cross-validation method, in which a training dataset of each sub-model is divided into K datasets, and tests are conducted K times. After defining each sub-model, the sub-model is trained with the training data set divided by the fold. The prediction of the validation data set is conducted to perform the K-fold averaging prediction that produces the prediction result. After each model is predicted K times, the average of the prediction value is designated as the resultant prediction value (mean of temporary predictions). The generated resulting prediction value is used as the training data of the meta learner to conduct the model training. After this, the prediction is finally performed using x_test, which is then compared using y_test to evaluate the final model.

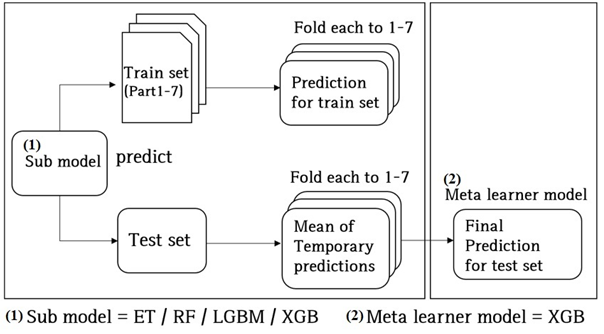

Figure 4.Configuration diagram of the stacking model.

K-fold	ET	RF	LGB	XGB
Fold 0	0.951	0.958	0.952	0.956
Fold 1	0.956	0.961	0.954	0.961
Fold 2	0.954	0.961	0.953	0.956
Fold 3	0.954	0.958	0.956	0.953
Fold 4	0.952	0.952	0.953	0.957
Fold 5	0.954	0.964	0.955	0.963
Fold 6	0.953	0.960	0.953	0.957
Mean	0.953+0.001	0.960+0.001	0.953+0.002	0.958+0.002
Full	0.953	0.960	0.953	0.958

This study used Extra Tree (ET), Random Forest (RF), Light XGBoost (LGB), and XGBoost (XGB) in the sub-model, and XGBoost was used in the meta learner, which was the final classifier. To implement the stacking model, vecstack [10] and Sklearn packages were used. The data for model learning were 15,000 learning data files provided by the 2018 information protection R&D Data Challenge AI-based malware detection track and collected 18,389 data files.  Out of 33,389 files, 23,657 files were malware, and 9,732 files were benign. Out of the extracted total data of 33,389 files, 80% were used as the training dataset, and 20% were used as the validation dataset. K value in the K-fold cross-validation was set to seven to conduct the learning. Once the 7-fold averaging prediction was conducted, S_train and S_test, which were the prediction result of the training and validation datasets, were generated. These result values were trained with the final classifier, XGBoost [11], to produce the final prediction result. The configuration diagram of the stacking model is shown in Figure 4. The prediction values of each model extracted by entering the dataset to the sub-model are presented in Table 2 . The final prediction result of 0.9671 was measured after entering the average of prediction values of each model to the final classifier. This meant that using the stacking model, which was an ensemble technique, showed the improvement of accuracy was greater than that of using only a single model.

4. Experiments Result

4.1. Model Evaluation

The performance evaluation indicators are described before presenting the experimental results. In this study, precision (PRE), true positive rate (TPR), false positive rate (FPR), accuracy (ACC), and F-score were compared as the measures of the performance evaluation. PRE refers to the proportion of detected malware files to actual malware files Equation 1. TPR refers to the ratio of actual malware files that are accurately detected. The larger the value is, the better the system is Equation 2. FPR refers to the proportion that true benign files are seen as malware files. This is different from other evaluation scores as the lower the value is, the better the system is Equation 3.

TPR and FPR have a positive correlation in general. They are used as helpful performance indicators if the class proportion is different because they are not affected by the class proportion. The calculation is conducted with actual classes in the confusion matrix.

The classification accuracy (ACC) refers to the proportion that both malware and benign files accurately detect in the total detection result. The larger the value is, the better the system is Equation 4. Finally, the F-score measures model accuracy, an indicator used to compare actual classifiers by reflecting the upper layer relationship between PRE and TPR in the evaluation Equation 5. When TPR and PRE are balanced, the F-score value is more significant.

To use them as the indicator, the confusion matrix in Table 3 was used. True positive (TP) means that actual malware (true) is predicted accurately as malware. False-negative (FN) means malware is expected as benign (false). False-positive (FP) means that actual benign files are predicted as malware. True negative (TN) means that actual benign files are accurately predicted as benign.

Condition (actual)
Malware	Benign
TP (True Positive)	FP (False Positive)	Malware	Prediction (prediction)
FN (False Negative)	TN (True Negative)	Benign

4.2. Result

In this section, the performance evaluation indicator results are presented to compare the experimental results of Extra Tree and XGBoost single models and results using the stacking model. pe_packer features were extracted from 470 malware files and 466 benign files and used as the input dataset.

The sub-model in the stacking model used Extra Tree, Random Forest, Light XGBoost, and XGBoost, and the meta learner employed XGBoost. All experiments were conducted using the Ubuntu 18.04 (64bit) operating system, Anaconda3(64bit) and Python 3.6 were also used. The detailed experiment environment is presented in Table 4.

Name	Specification
OS	Ubuntu 18.04 (64bit)
CPU	Intel Xeon-2690 4-CPU
RAM	128.0GB
GPU	NVIDIA GTX-1080TI 4-GPU

Model	PRE	TPR	FPR	ACC	F-score
ET Model	92.1%	94.4%	8.1%	93.1%	93.2%
XGB Model	90.6%	95.2%	9.8%	92.4%	92.6%
Stacking	94.6%	95.2%	5.3%	94.6%	94.9%

Table 5 presents the results after conducting the model's performance evaluation indicators based on the learning results using the single models of Extra Tree and XGBoost and the learning results using the stacking method. It displays PRE, TPR, FPR, ACC, and F-score evaluation results of benign and malware files. Figure 5 shows the receiver operating characteristic (ROC) curve of the experimental results of the performance evaluation indicators. The larger the area below the graph is, the better the result is. The TPR, FPR, ACC, PRE, and F-score of the single models exhibited 94.8%, 8.95%, 92.75%, 91.35%, and 92.9% on average. The TPRs, FPR, ACC, PRE, and F-score of the ensemble stacking model exhibited 95.2%, 5.3%, 94.6%, 94.6%, and 94.9%. The performance evaluation indicator results verified that better performance of malware detection was displayed when using the stacking model than when using the single models. In addition, the speed of the models was measured using the test dataset; Extra Tree, XGBoost, and Stacking models took around 0.06 sec, 0.01 sec, and 0.2 sec respectively.

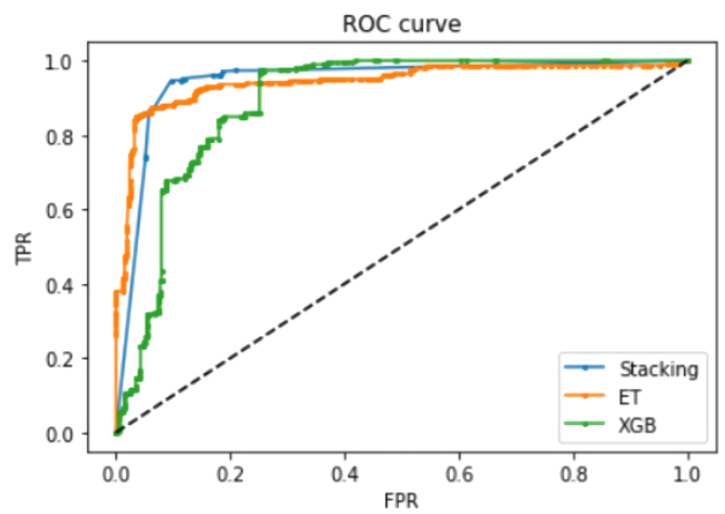

Figure 5.ROC Curves of ET and XGB single models and stacking model.

5. Conclusions

This study proposes a malware detection system using a static analysis and stacking method to quickly cope with the security threats based on variant malware, which has increased significantly with the rapid advancement of information technology. The features of PE headers in malware were extracted through static analysis to detect malware rapidly and accurately without executing malware and processed using the pe_header, pe_packer, pe_top, and n-gram methods. The processed features were put into the machine learning single logistic regression models, SVM, Random Forest, and XGBoost and their accuracy was compared. The pe_packer features were then selected as the input data to be trained in the model as they had the best accuracy. The stacking method that produced the final prediction value using the prediction results of the single models was used to develop a model to implement a highly accurate model. The experiment results showed that the stacking model had 96.71% of model accuracy, 94.6% of classification accuracy, 95.2% detection rate, and 5.3% of the false-positive rate. Although the stacking model, which was one of the machine learning ensemble methods, was verified to have a better performance of malware detection than using only the single model, the speed was relatively slower than that of the single models. The sub-model can be modified to solve this, and refined feature data may be used to improve the speed. For future study, various study topics such as learning models suitable according to malware family types and feature characteristics need to be researched as well as fast and accurate malware detection.
