Impact Energy Absorption Capability of Polygonal Cross-Section Thin-Walled Beams under Lateral Impact

Sanjay Patil1* ; Arvind Bhosale2 ; Vijaypatil Dhepe3; Dheeraj Lengare4 ; Ravi Kakde5

1,2,3,4,5Assistant Professor, Department of Automobile Engineering, Government College of Engineering and Research, Avasari (kh), Pune, Maharashtra, India.

Abstract

The continuing efforts of automotive technology aim to deliver even greater safety benefits and reduce the weight of a vehicle. Thin-walled beams (TWB) are widely used as strengtheners or energy absorbers in vehicle bodies due to their lightweight and excellent energy absorption capacity. Thus, researchers are interested in the collapse behaviour and mechanical properties of thin-walled beams under static and dynamic loadings. Circular TWB is commonly used in vehicle side doors. In the event of a side collision, this beam deforms and absorbs the greatest amount of impact energy. In this study, the energy absorption capability and crashworthiness of polygonal cross-section TWBs subjected to lateral impact was investigated using numerical simulations. Polygonal TWB ranging from square to dodecagon, as well as circular cross section, were selected for this study. Energy absorption (EA), specific energy absorption (SEA) and crash force efficiency (CFE) crashworthiness indicators are employed to evaluate the bending collapse performance. Because TWB thickness and weight have a greater impact on bending performance, they were kept constant across all polygons. In ABAQUS explicit dynamic software, finite element simulations are performed, and plastic hinges and flattening patterns of all polygons are examined. The results show that heptagon, octagon, and nonagon cross-section TWB perform better in crashworthiness than square and circular TWB.

Keywords:Energy absorption, Specific energy absorption, Bending collapse, Crashworthiness, Crash force efficiency, Thin wall tube, Polygonal cross-section.

1. Introduction

Thin-walled beams are widely used for crashworthiness applications due to their advantages of low price, lightweight, high strength and stiffness, and excellent energy absorption capacity [1 ]. TWBs are commonly employed in automobiles, special purpose vehicles, roll-over and falling object protective structures, and other areas subjected to safety requirements [1 , 2 ]. At the time of impact, the beam deforms and absorbs a significant amount of energy [2 , 3 ]. TWBs are available in a wide range of cross-sections, including round, rectangular, square, and elliptical [4 , 5 ].

here are various theories that are popular to understand the collapse behaviour of thin-wall tubes during lateral loading to evaluate strength and energy absorption characteristics. Brazier first pointed out the flattening associated with the bending deformation of a cylinder. The cross-section of a beam flattens as the deformation progresses when it is subjected to lateral loading. As the cross-section flattens, the bending stiffness of the beam decreases, the relationship between crush force and deformation becomes nonlinear, and the beam deforms largely as a result of the imposed crush force [6 , 7 ]. Flattening patterns are studied experimentally and theoretically by many researchers, including Abramowicz [8 ]; Saadatfard, et al. [9 ]. According to analytical and experimental research by Kecman [10 ] for square and rectangular tubes, when a thin wall beam is subjected to a bending load, the cross-section starts to deform plastically. These plastic deformations occur over some folding lines, which are called "hinge lines". The progression of plastic hinge movement drives the crashworthiness performance of the circular beam. Many researchers have used this hinge line model and found good agreement between numerical and experimental results, including Poonaya, et al. [11 ]; Elchalakani, et al. [12 ]; Aljibori, et al. [13 ].

otelko, et al. [14 ] investigated the yield line mechanism (YLM) model of rectangular and trapezoidal box section beams. These models of the YLM are based on experimental findings. Plastic folding of the cross-section walls occurs when thin-walled parts collapse under lateral impact. The TWB strength and energy absorption capacity can be evaluated using a bending moment–rotation relationship obtained from the YLM study of the collapse mechanism. Maduliat, et al. [15 ] examined steel hollow sections using the YLM model and found that the YLM collapse curves are in good agreement with the real experiment graphs.

Crashworthiness indicators are used to compare the crashworthiness of different thin-wall tubes with varying cross-sections, thicknesses, diameters, materials, and so on. Energy Absorption (EA), Specific Energy Absorption (SEA), average crash force (Favg) and Crash Force Efficiency (CFE) are crashworthiness indicators [7 , 9 ].

EA indicator is used to estimate the total energy absorbing capacity of a TWB and it is evaluated by calculating the area under the force displacement curve of the bending process. A higher EA value implies that the beam has a greater ability to absorb energy during a collision. A mathematical equation for EA is,

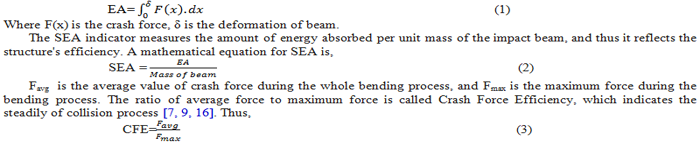

 In order to achieve better bending performance, weight efficiency, and energy absorption capacity, TWBs have attracted the interest of researchers. The crashworthiness of TWB is influenced by thickness, material, loading angle, and cross-section of the beam. Of these, beam thickness has the greatest impact crashworthiness Maduliat, et al. [15 ]; Sofi, et al. [16 ]; Bilston, et al. [17 ].

aadatfard, et al. [9 ] from experimental and numerical results illustrate that by increasing the wall thickness, the EA of the beam will increase. In order to improve the crashworthiness of tubes, some researchers have used hybrid mechanisms. A functionally graded thickness tube is used by Guangyao, et al. [18 ]. The experimental and numerical results show that the FGT tube absorbs more energy than the uniform thickness tube. Ghadianlou and Abdullah [19 ] applied various rib arrangements to the side door beams to improve the crashworthiness. Lee, et al. [7 ] applied form-filled material to improve the crashworthiness of the beam. Different cross-section beams were studied by some researchers in order to compare their crashworthiness. The rectangular cross-section has greater CFE than the square section, but the square section has better SAE than the rectangular section, according to Saadatfard, et al. [9 ]; Lee, et al. [7 ]; Sofi, et al. [16 ]; Bilston, et al. [17 ]; Patil, et al. [20 ]. The studies of Tang, et al. [21 ] show in a comparison of circular, rectangular, and trapezoidal cross-section beams, the elliptical beam has better SEA and CFE. To the author’s best knowledge, in available literature, less exposure has been observed in the modification of polygonal cross-section TWBs. In this paper, the bending collapse behaviours of different polygonal cross-sections TWB under lateral impact were investigated through numerical analysis. The weight and thickness of TWB will influence crashworthiness, so in order to compare the crash performance of various beams, the thickness and weight are kept the same for all beams. The numerical simulations were performed using ABAQUS explicit dynamic software. The crashworthiness indicators are used to compare the performance of various beams. The numerical simulation setup has been validated with reported literature experimental results.

2. Materials and Methods

In order to analyze the crashworthiness of various polygons, explicit dynamic simulations are performed and crashworthiness indicators are evaluated to study the performance of the beam.

2.1. Geometry and Material of Polygonal TWB

All polygon profiles have a thickness of 2mm, and the weight of all polygons is maintained fixed at 2.14kg by adjusting the edge length of the polygon. The dimensions of all polygons are shown in Table 1. Where ‘L’ is the length of the edge and ‘O’ is the outer radius of the polygon.

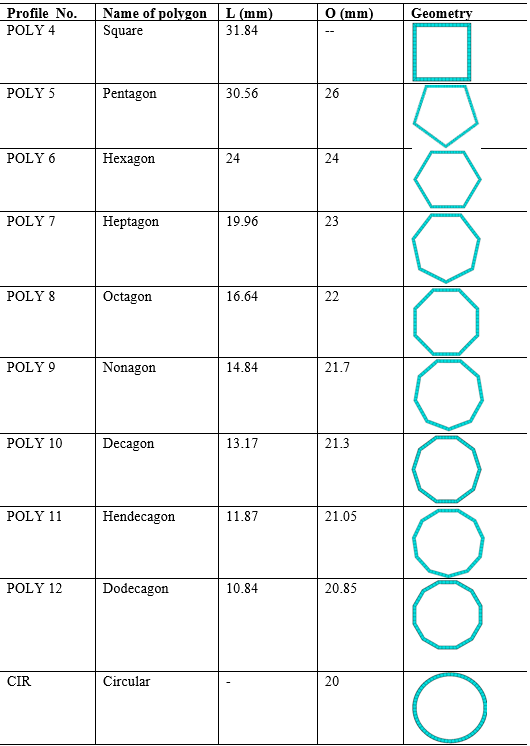

Table-1.Dimension of polygon.

The polygonal tubes are modeled from A36 steel material. For the simulation, the Johnson–Cook material model was selected and the values of its parameters are adopted from the literature [22 ] and shown in Table 2.

Table-2. A36 Johnson–Cook material model parameters.

Parameter
Value
Description
A
146.7 MPa
 Material parameter
B
896.9 MPa
 Material parameter
N
0.320
 Strain power coefficient
C
0.323
 Material parameter
έρ
1.0s-1
 Temperature power coefficient
ρ
7850 kg/m3
 Reference stain rate
Tm
1773K
 Density
Cp
486 J/kg-oK
 Specific heat

2.2. Numerical Simulation Setup

As the excitation frequency is more than the natural frequency of the structure, numerical simulation is performed in the ABAQUS explicit dynamic module. The systematic and geometry parameters of the simulation setup are shown in Figure 1 and Table 3, respectively, where ‘d' is the outer diameter of hollow beams, the thickness of the beam is ‘t’, and ‘l' is the length of the beam. The beam is supported by a cylindrical support of diameter ‘r’ with a span  ‘s’ . At the mid-span of the beam, a cylindrical impactor of diameter ‘R' and mass ‘M' is impacted circumferentially on the beam with a velocity of ‘V’.

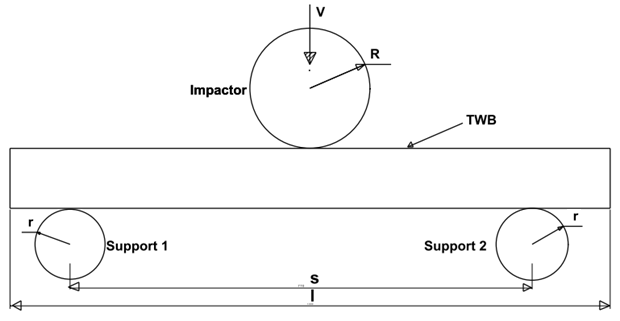

Figure-1.  Systematic of simulation setup.

Table-3. Simulation properties.

l(mm)
s(mm)
R (mm)
r (mm)
M(kg)
t(mm)
d
500
400
100
50
200
2
40

The impactor and supports are treated as rigid bodies, whereas the beam is treated as a shell body with a thickness of 2 mm. For the impactor, one direction translation displacement is allowable and for supports, all degrees of freedom are fixed. The impactor and supports are considered as rigid bodies, while the beam is taken as a shell body having a 2 mm thickness. A coefficient of friction of 0.2 is considered at all surface to surface contacts between the impactor, beam and support. In ABAQUS, the ‘All with self’ surface friction pair is used to avoid interpenetration of surfaces during beam bending. The impact velocity of the impactor is 5.8 m/s with a lumped mass of 200kg. After mesh convergence analysis, the mesh size of the tube has been set at 2mm, and the mesh size of the impactor and support is set at 10mm. For all simulations, a four-node shell continuum (S4R) element with five integration points is used. The impactor has a 200mm displacement. Figure 2 shows the finite element model of the CIR profile.

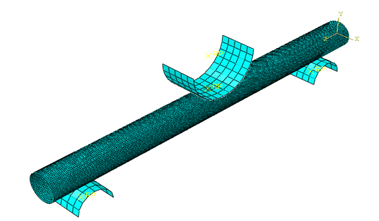

Figure-2 .Numerical simulation model.

2.3. Validation of Simulation Setup

Before studying the analysis of the crashworthiness indicators of various profiles, the numerical simulation results are compared with experimental results published by Tang, et al. [21 ]. In this literature, a three point bending test was carried out on a circular tube having a 28mm diameter and a 2mm thickness. The tube is made of AISI1080 material. The impactor's mass and velocity are 148kg and 3.4m/s, respectively. To compare the numerical results of this study with the experimental results of Tang, et al. [21 ] numerical simulation was performed using Tang, et al. [21 ] experimental setup and both results are shown in Figure 3. The experimental results of literature [21 ] are closely similar with simulation result, the absolute error between them is less than 7% so this simulation setup is considered for further studies.

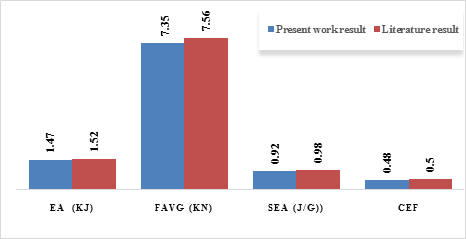

Figure-3.Numerical v/s experimental result of Tang, et al. [21 ].

3. Results and Discussion

The crashworthiness indicators are listed in Table 4 and are evaluated using Equations 1, 2, and 3. EA, SEA, CFE crashworthiness indicators of all profiles are discussed in the following subsection.

Table-4.Crashworthiness indicators.

Profile Name
EA (kJ)
SEA (kJ/kg)
Favg  (kN)
Fmax (kN)
CFE
POLY 4 (square)
1.796
0.8384
8.984
16.469
0.545
POLY 5
1.825
0.8517
9.126
19.450
0.469
POLY 6
1.373
0.6410
6.869
15.030
0.457
POLY 7
1.433
0.6828
7.316
11.341
0.645
POLY 8
1.572
0.7345
7.871
12.754
0.617
POLY 9
1.600
0.7468
8.003
12.190
0.656
POLY 10
1.377
0.6427
5.887
11.444
0.514
POLY 11
1.311
0.6117
5.410
11.433
0.474
POLY 12
1.311
0.6117
6.555
11.879
0.552
CIR (Circle)
1.228
0.5732
6.143
10.587
0.580

1.3.1. Maximum Crash Force (Fmax) and Force–Displacement Characteristics

Figures 4, 5, and 6 illustrate the force displacement diagrams of profiles POLY 4, 5, 6, profiles POLY 7, 8, and 9, and profiles POLY 10, 11, 12, CIR, respectively, for ease of discussion. A bending and cross-section flattening pattern of all profiles at simulation frame 15 are shown in Figure 7.

The general characteristics of force-displacement curves for all profiles are similar, but their collapse modes are very different. As profiles in Figure 4 give more resistance to flattening, while profiles in Figure 6 can flatten with less resistance. The results can also be observed in Figures 4, 6, and 7. From Figure 4 and 6, it is seen that for profiles POLY 4, 5 and 6, the crash force peak value (Fmax) is larger than for profiles PLOY 11, 12, and CIR. While the crash peak force of profiles shown in Figure 5 is in between the profiles in Figure 4 and 6. The crash force achieves an initial peak as a result of the profile's resistance to flattening, when plastic hinges start to form on edges or corners of polygon the crash force drops and then fluctuates due to the folding of profile edges.

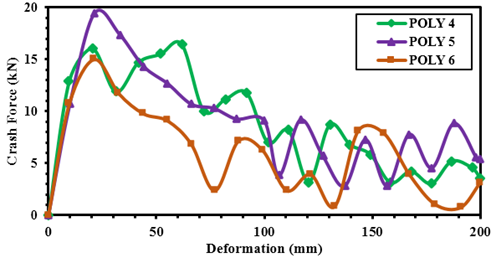

Figure-4.Force- Disp. curve of Profile POLY 4, 5 and 6.

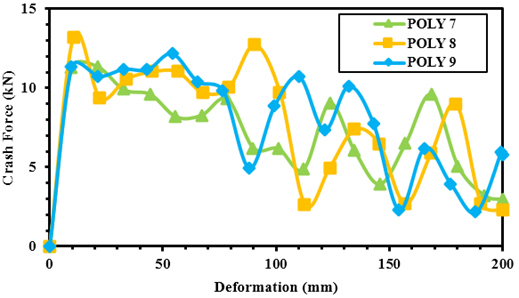

Figure-5. Force- Disp. curve of Profile POLY 7, 8 and 9.

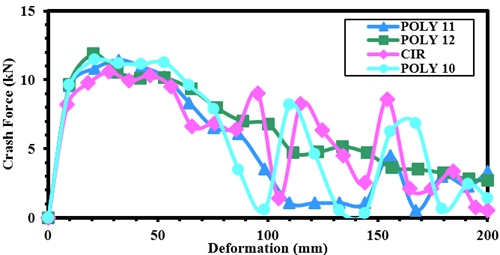

Figure-6.Force- Disp. curve of Profile POLY 10, 11, 12 and CIR.

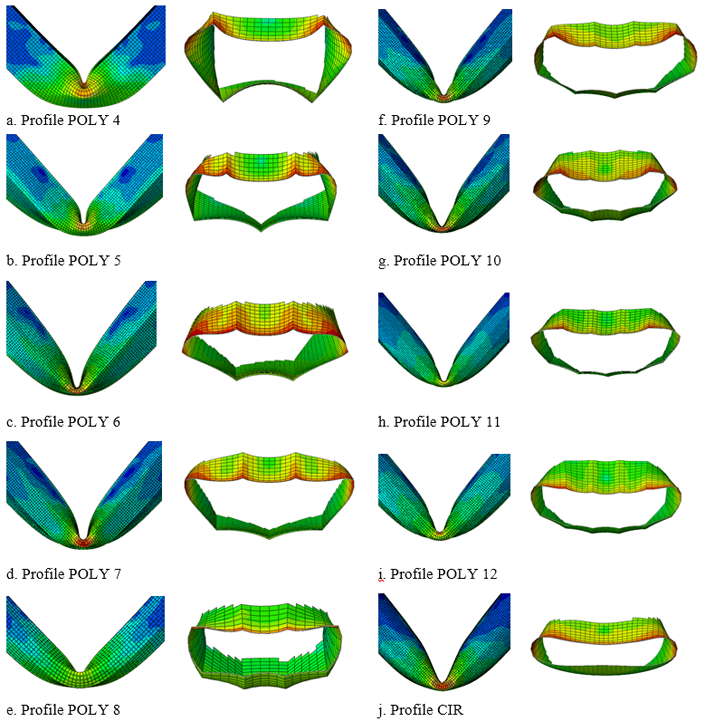

Figure-7.Bending and cross-section flattening pattern of beams at frame 15.

3.2.Energy Absorption (EA)

The energy absorption of all profiles is shown in Figure 8. The largest energy absorption capacity of 1.825 and 1.796kJ/kg is seen in the POLY 4 and POLY 5 profile TWB respectively, while the CIR profile has the lowest energy absorption capacity of 12.28 kJ/kg. From the figures, it can also be observed that the EA for CIR, POLY11, and POLY12 is approximately equal. As stated in section 3.1, plastic hinges drive the bending performance of the beam. It can be seen in Figure 7 that plastic hinges are created along the sides of profiles POLY 4 and 5, so they provide further resistance and absorb greater energy during bending, whereas plastic hinges are created at the corner of polygons for profiles CIR, POLY11 and 12, so they can offer less resistance and absorb less energy during bending.

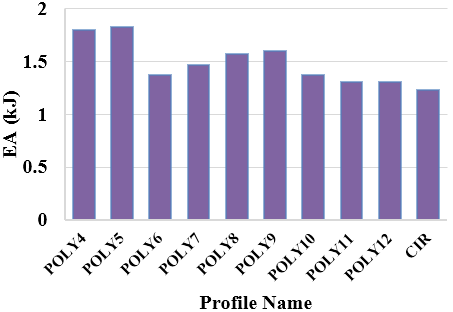

Figure-8. Energy Absorption of beams.

3.3. Specific Energy Absorption (SEA)

Figure 9 shows the SEA value for each profile. From figure, the POLY 4 and 5 profiles have larger SEA, while CIR, POLY 11 and 12 have less SEA. SEA indicates the energy absorbed per unit mass of the beam. The EA indicator is described in section 3.2, EA values of profiles PLOY 4 and PLOY 5 are more and profiles CIR, PLOY 11, and PLOY 12 are less. As the mass of each profile is kept the same, these profiles show SEA indicator values in-line with the EA values. The greater value of the SEA indicator implies that the structure is more efficient, consequently POLY 4 and 5 are more efficient. Whereas profiles POLY 9 and 10 have moderate efficiency, and profiles POLY 11, 12, CIR profiles have lower efficiency.

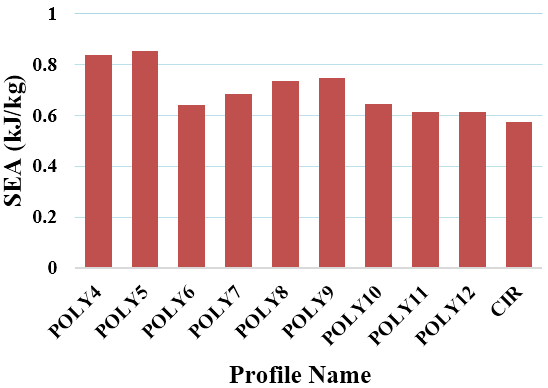

Figure-9.Specific Energy Absorption of beams.

3.4. Crash Force Efficiency (CFE)

Figure 10 shows the CFE of each profile. As the CFE indicator shows steadily of bending collapse. The CFE indicator has a range of 0 to 1. The crash force of a beam with a CFE value near to 0 is initially higher but rapidly declines in the bending process. As a result, the energy absorption capacity is greater at the start of the bending process and decreases as the deformation of the beam increases. Therefore, a lower CFE indicator is undesirable. When the CFE indicator is close to 1, it means that the energy absorption capacity of the beam does not degrade significantly as it deforms.

The force-displacement curve shown in Figure 4, for POLY 4, 5 and 6 profiles, the crash force reaches a maximum level, and when plastic hinges are starts to form around  one of the edge or corner of the polygon, the crash force is considerably reduced. The flattening pattern of these profiles is shown in Figure 7. Finally, the Favg of the entire bending process is much lower than Fmax. As a result, the CFE indicator is lower. POLY 5 has a CFE of 0.469, which is the lowest among the profiles. Figure 5 shows the force-displacement curve of profiles POLY 7, 8, and 9.

t can be seen that the crash force is comparatively more stable. From the cross-section flattening pattern of these curves shown in Figure 7, it is observed that the plastic hinges gradually produce more than one number of edge and corner polygon, so the crash force of these profiles is more stable than profiles POLY 4, 5 and 6. Finally, the gap between Favg and Fmax is smaller, and the CFD of these profiles is larger than that of others. POLY 9 has a CFE of 0.649, which is the highest among the profiles.

The CFE values for profile PLOY 10, 11, 12, and CIR are in between the above two cases. These profiles have a cross-section flattening pattern similar to POLY 7, 8, and 9. However, as the number of edges on a polygon increases, the length of each edge grows smaller. As a result, these profiles have lower resistance than POLY 7, 8, and 9.

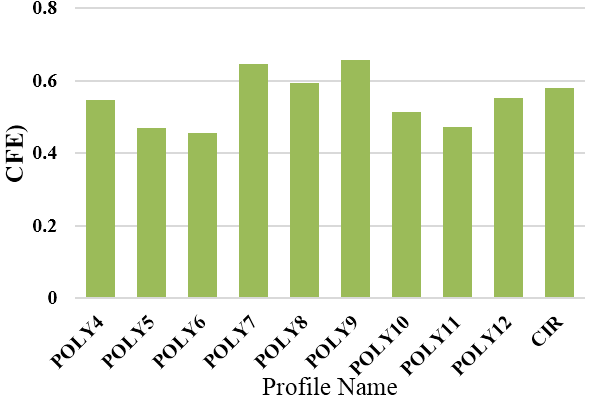

Figure-10.CFE of beams

4. Conclusion

In this work, the crashworthiness of a polygonal cross-section beam is studied by numerical simulation. The development of plastic hinges and the cross-section flattering pattern of the beam have significantly impacted on crashworthiness indicators. To compare the performance of beams, EA, SEA, and CFE crashworthiness indicators are used and the thickness and weight of the beam are kept constant. Beams with higher SEA and CFE values have superior bending capability.
